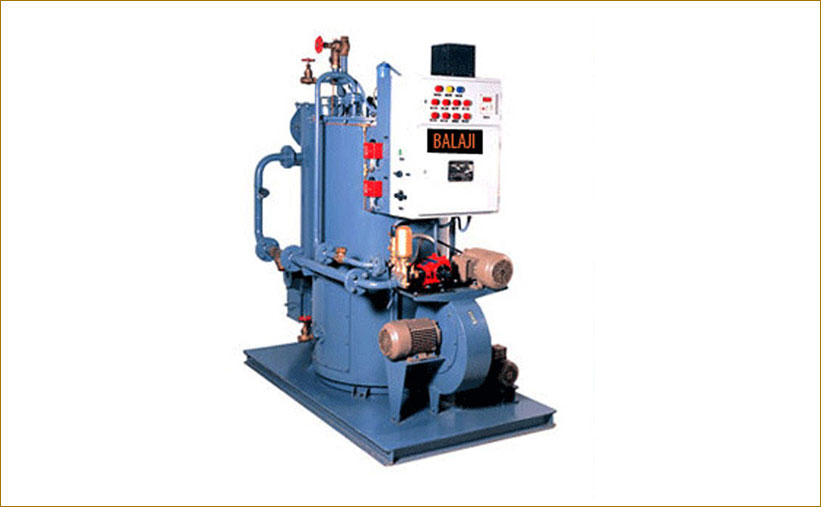

AUTOMATIC STEAM BOILER / HOT WATER GENERATOR

Model	TS - 100	TS - 200	TS - 400
Rated Steam Output From & At Deg. Ceicius of Feed Water	100 Kg / Hr	200 Kg / Hr	400 Kg / Hr
Steam Pressure Kg /Cm2 (max)	15	15	15
Steam Temp Deg. Ceicius2 (max)	205	205	205
Thermal Efficiency on NCV	88%	88%	88%
Feul Consumption Ldo / Fo in kg/hrs	6.0	12.0	24.0
Dry Wt.Kg	500	750	800
Overall Dimensions MM	L - 1400 W - 975 H - 1500	L - 1500 W - 1000 H - 1500	L - 1800 W - 1250 H - 1800

Electrical Details (3 Phase 440 Volts 50 Hr)
Feed Pump	0.75 hp	1 hp	2 hp
Fuel Pump	0.5 hp	0.5 hp	0.5 hp
Blower	0.5 hp	1 hp	2 hp
